Ship with Walmart

Updated August 27, 2026 22:44

Ship With Walmart is a carrier program that allows 🇺🇸 US-based ShipStation merchants to access pre-negotiated FedEx and USPS shipping rates directly for their Walmart orders. Operating similarly to the ShipStation Wallet model, Walmart manages the underlying carrier accounts while you benefit from their discounted rates. Rather than being an independent carrier network, Ship With Walmart seamlessly integrates these existing carrier services into your account to simplify fulfilling your Walmart orders.

API Code: ship_with_walmart

Ship with Walmart Integration Requirements

Connection Requirements:

🇺🇸 A US-based ShipStation account
An active Walmart seller account with Ship With Walmart enabled
Client ID from developer.walmart.com
Client Secret from developer.walmart.com

Shipping Requirements:

Domestic (US) shipments only
Order originating from your Walmart Order Source Connection

Connect a Ship With Walmart Account to ShipStation

To connect your Ship With Walmart account to ShipStation:

Go to Account Settings.

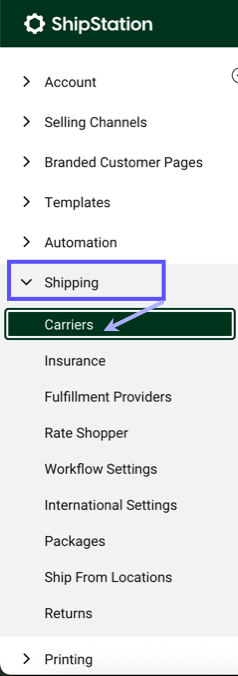

Select Shipping, then choose Carriers from the sidebar.

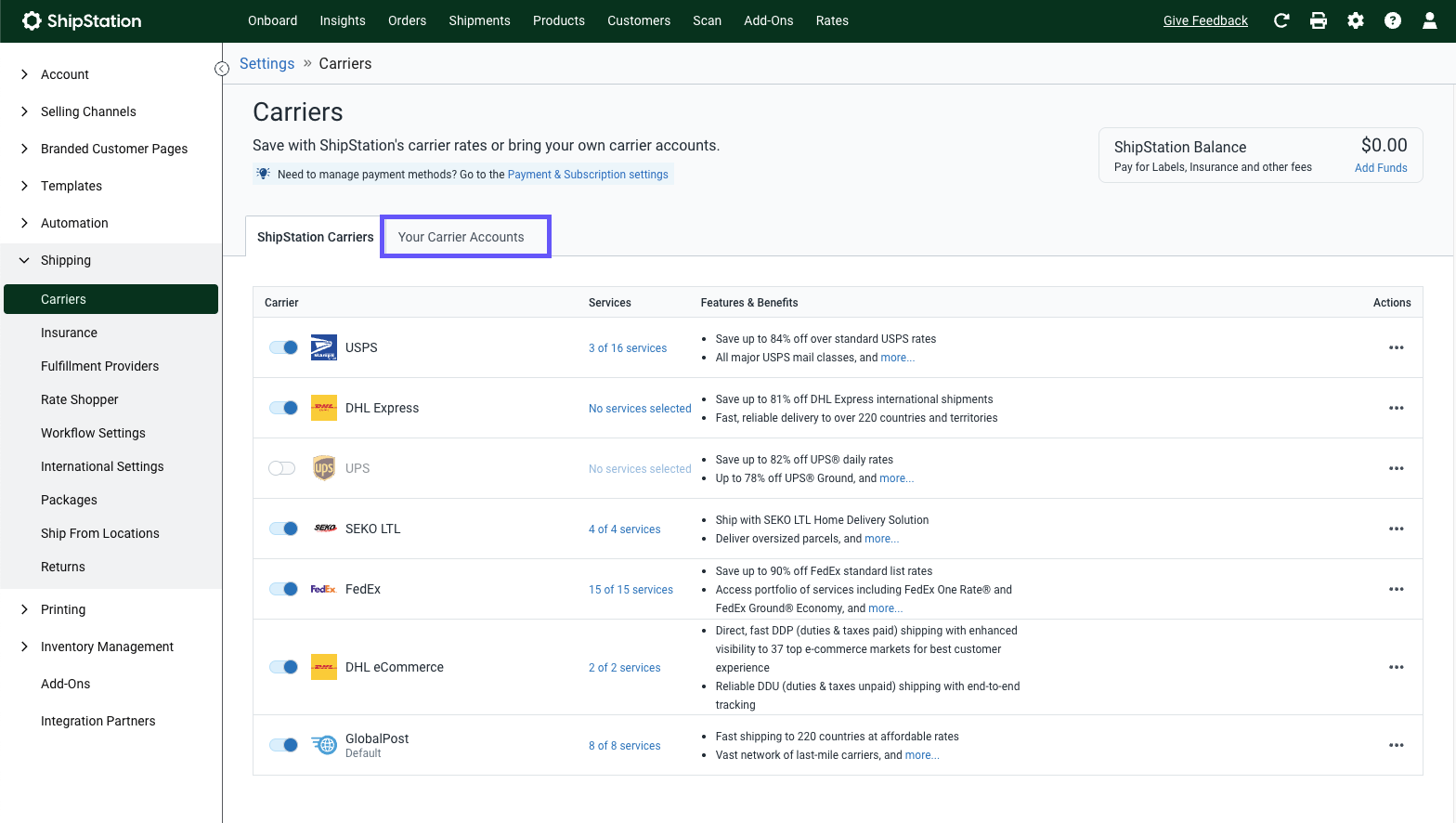

Select the Your Carrier Accounts tab.

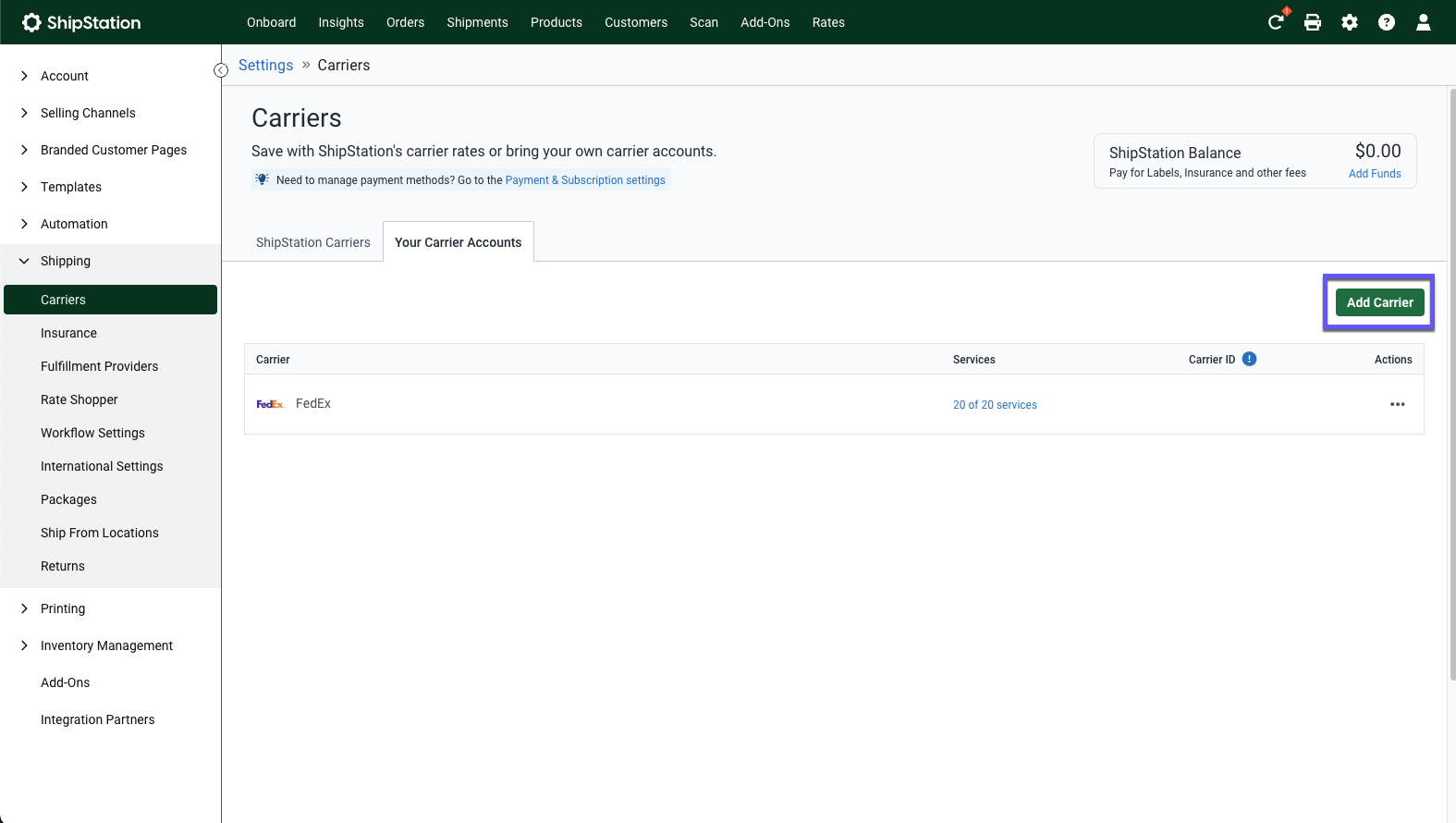

Select Add Carrier .
Select Ship With Walmart and click Connect.
Enter your Ship With Walmart Client ID and Client Secret, and choose an Account Nickname for you to identify the carrier account in ShipStation.
Click Connect.

Available Features for Ship with Walmart

The ShipStation integration with Ship with Walmart supports the following standard features:

Feature	Supported?
Domestic Shipping
International Shipping
Electronic Customs Submission
Return Labels
Estimated Rates
Carrier Insurance
Tracking
End of Day (Electronic)
End of Day (PDF)
Label Branding
Label Messages
Void Labels
Multi-package Shipping
Multiple Accounts

Available Services, Packages, & Confirmation Types

Ship with Walmart Domestic Services

Service Name	API Code
FedEx 1Day Freight	`ship_with_walmart_1day_freight`
FedEx 2Day	`ship_with_walmart_fedex_2day`
FedEx 2Day Freight	`ship_with_walmart_fedex_2day_freight`
FedEx Express Saver	`ship_with_walmart_fedex_express_saver`
FedEx US Ground	`ship_with_walmart_fedex_us_ground`
FedEx Home Delivery	`ship_with_walmart_fedex_home_delivery`
FedEx Ground Economy	`ship_with_walmart_fedex_ground_economy`
USPS Priority Mail	`ship_with_walmart_usps_priority_mail`
USPS Ground Advantage	`ship_with_walmart_usps_ground_advantage`

Ship with Walmart Package Types

Service Name	API Code
Custom Package	`ship_with_walmart_custom_package`
FedEx Pak	`ship_with_walmart_fedex_pak`
FedEx Envelope	`ship_with_walmart_fedex_envelope`
Priority Mail Flat Rate Envelope	`ship_with_walmart_pm_flat_rate_envelope`
Priority Mail Flat Rate Padded Envelope	`ship_with_walmart_pm_flat_rate_padded_envelope`
Priority Mail Flat Rate Legal Envelope	`ship_with_walmart_pm_flat_rate_legal_envelope`
Priority Mail Small Flat Rate Box	`ship_with_walmart_pm_small_flat_rate_box`
Priority Mail Medium Flat Rate Box (top-loading)	`ship_with_walmart_pm_medium_flat_rate_box_1`
Priority Mail Medium Flat Rate Box (side-loading)	`ship_with_walmart_pm_medium_flat_rate_box_2`
Priority Mail Large Flat Rate Box	`ship_with_walmart_pm_large_flat_rate_box`

Ship with Walmart Confirmation Types

Confirmation Type	Description
None (`0`)	No Confirmation Required
Signature (`2`)	Signature required → triggers carrier's `addOns='SIGNATURE'`

Additional Features for Ship with Walmart

The ShipStation integration with Ship with Walmart allows for the following additional features:

Feature	Description
Estimated Rates	Rate response breaks out three components: base shipping rate, insurance cost, and signature cost
Void Labels	Merchants can void a label any time up until it's marked as shipped. Once shipped, the label can't be voided. Corrections go through Walmart's adjustments process. Unused Label Refunds Merchants are charged for a label when the order is marked Shipped. If the label is unused, it will be refunded through refunds/adjustments. Refunds can take 14–30 days to appear.
Dangerous Goods	Shipping of Dangerous Goods (DG) is supported via packages[].products.dangerous_goods[], mapped to the Hazmat flag (set true only when the array is non-empty). This works end-to-end on the backend today, but limited-quantity DG shipments aren't fully supported yet, since ShipStation has no UI field for packages.dangerous_goods_package_info.regulation_level (a platform gap, not a carrier limitation)
Built-in Carrier Insurance ("Seller Protection")	Every shipment includes $100 in automatic coverage. Additional coverage up to $500 can be purchased for an extra fee.

Ship with Walmart Integration Notes

The ShipStation integration with Ship with Walmart does not support third-party billing.
Domestic shipments only. Ship with Walmart supports domestic shipping (US origin and US delivery) only.
Tracking. ShipStation provides a tracking number and direct carrier link (FedEx/USPS), but status updates and live event feeds are currently not supported via the Walmart API.
The required purchaseOrderId field must contain Walmart's purchase order identifier (mapped from sales_orders.order_id ), not a general reference number.
Sandbox only returns mocked Create Label responses. Because the Sandbox environment returns a fixed tracking number for all shipments, end-to-end label creation and voiding cannot be fully tested there.

Use a real, cooperating seller account in Production to validate the full flow.
Label Messages. Walmart labels already print the SKU number. Standard Label Message fields are currently unavailable.

Troubleshooting Tips for the Ship with Walmart Integration

Here are some common issues, potential causes, and troubleshooting tips.

Known Issues

Issue	Details
Sandbox tracking number is static	The Sandbox Create Label call returns the same tracking number for every shipment created, and the Download Label method returns a 404 ("Request Not Found") for that tracking number — full label/tracking validation isn't possible in Sandbox.
No live tracking	See Tracking Details above.
Limited-quantity dangerous goods not supported	ShipStation has no field to pass `packages.dangerous_goods_package_info.regulation_level`. This issue will resolve automatically once that platform field exists. Intentional, not a bug.

Partner-Specific Errors

Error	What it means	What to do
404 "Request Not Found, Please correct the request!" on `/v3/shipping/labels/carriers/{carrier}/trackings/{trackingNumber}`	Occurs in Sandbox when trying to download a label for the mocked/static tracking number returned by Create Label.	Known Sandbox limitation — not expected in Production. If seen in Production, escalate to Walmart.
Bad Request on Get Rate (`/shipping-estimates`), e.g. "Invalid shipByDate value. Please enter date in format yyyy-MM-dd'T'HH:mm:ss.SSS'Z'" (code LS-4002)	Caused by a missing or invalid `deliverByDate`/`shipByDate` value.	Confirm current field/date-format requirements with Walmart. As of roughly April 2026 this field was made optional in Sandbox.
Generic 400: "The request body is either missing or required fields are not passed."	A vague error returned by the Walmart production API. Historically seen when the required `packageType` field was sent as null.	An internal validation was added to catch a null `packageType` before it's sent, but this message can surface for other missing/invalid fields, too. Treat each occurrence as a separate investigation.
