Miva Connect

ShipStation's integration with Miva Connect uses the latest ShipEngine Connect APIs to import your Miva orders and communicate shipment information back to Miva.

Miva Connect is available for integration, but it is still in a Beta testing phase. This means some features may not be fully available or behave as expected.

New Miva Integration

ShipStation has updated its integration with Miva to support its most up-to-date features for Miva Connect. Follow our Miva Connect migration guide to update your current Miva integration.

Miva Connect Requirements

Connection Requirements:

  • An active account with Miva Connect on Miva 10.01.00 or higher.

  • Details of your Miva Connect account:

    • Store Code

    • JSON API Endpoint

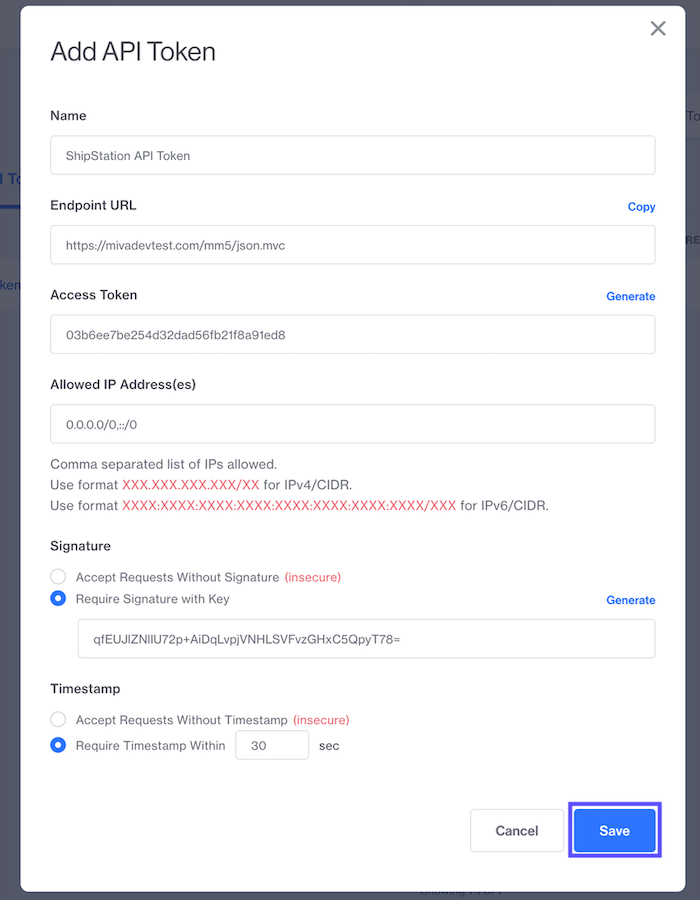

    • JSON API Access Token

    • JSON API Signature

    • Order Workflow Queue Code (See Order Import Requirements for details)

    • Currency Code

    • Main Image Type Code

    • Order Custom Field Mapping (optional)

Order Import Requirements:

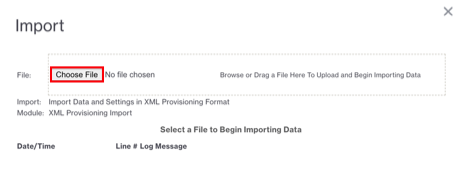

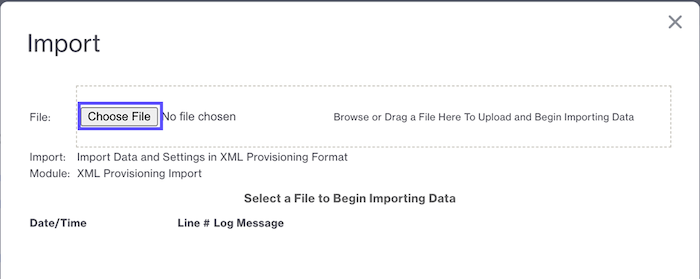

  • Your Miva Order Workflow Queue Code is an XML configuration file that ShipStation uses to import your orders. You can customize your Order Workflow Queue to determine when an order is put into the "queue" from which ShipStation imports orders.

    See Miva's ShipStation integration guide for more details.

Connect a Miva Connect Store to ShipStation

Scope of Support

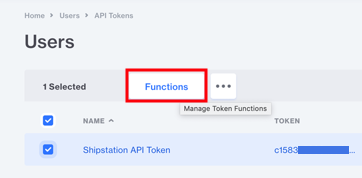

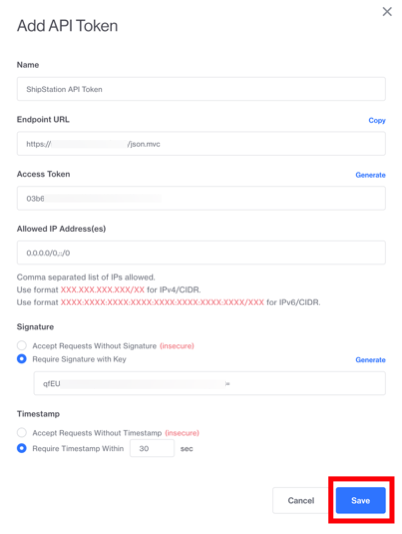

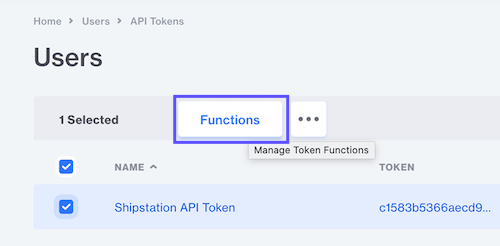

Installing the Miva ShipStation configuration file and creating a new API token in Miva are beyond the ShipStation scope of support.

Contact Miva Support for assistance with the ShipStation configuration process, as it may differ based on your unique account configuration. See Miva's ShipStation integration guide for more details.

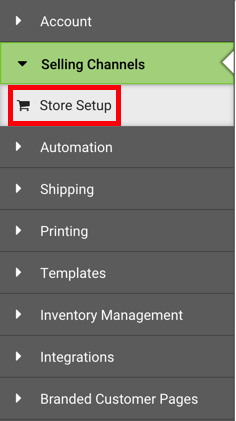

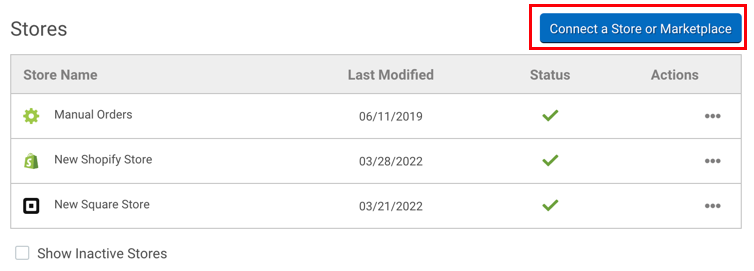

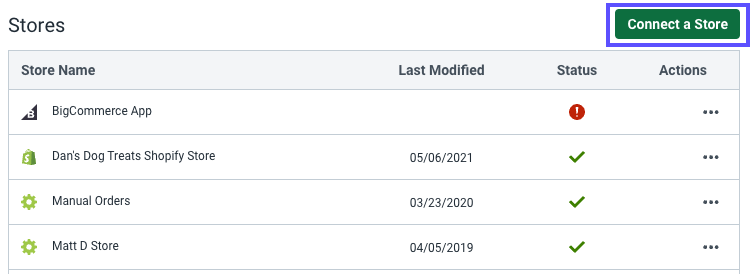

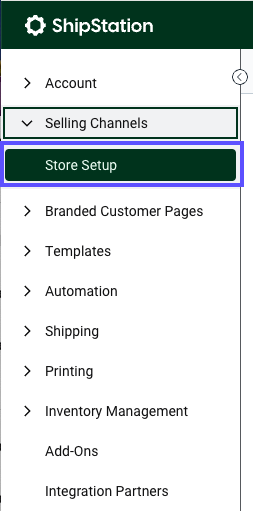

To connect your Miva Connect store to ShipStation:

After you've completed the connection steps, the store's Settings page will open. You can adjust your store-specific settings like branding and customer notifications, if you wish. Or click Save to close.

Available Features for Miva Connect

The ShipStation integration with Miva Connect supports the following standard features:

Order Status Mapping

ShipStation Status

Miva Connect Order Status

Awaiting Payment

Order in Miva has not been paid for in full or no payment has been made

Awaiting Shipment

Pending

Processing

Partially Shipped

Shipped

Shipped

Cancelled

All items are canceled in Miva for an order that has already been sent to ShipStation

On Hold

Ordered paid, but all items are marked as Backordered in Miva

Data Sent with Shipment Notification

This table indicates which data ShipStation sends to Miva Connect with the marketplace shipment notification:

Field

Sent to Marketplace?

Status Update

Green checkmark. Supported feature. Yes.

Tracking Number

Green checkmark. Supported feature. Yes.

Carrier

Green checkmark. Supported feature. Yes.

Service

Green checkmark. Supported feature. Yes.

Carrier Fee

Green checkmark. Supported feature. Yes.

Note to Buyer

Red X mark. Unsupported feature. No.

Item Information

Green checkmark. Supported feature. Yes.

Status UpdateTracking NumberCarrierServiceCarrier Fee

The shipment update ShipStation sends to the selling channel will include any Notes to Buyer set on the order in ShipStation.

Item Information

If a store allows custom statuses, this means you define that statuses your orders use in your selling channel. In most cases, if you have custom statuses you'll need to define which ShipStation statuses each custom order status corresponds to.

ShipStation will import the customer's email address with the order data and can send shipment confirmation and delivery emails to that email address (configured in your Store settings).

ShipStation will import the customer phone number with the order data.

ShipStation will import the shipping method chosen by the customer during their store checkout.

ShipStation will import the payment method used to pay for the order.

ShipStation will import discount and coupon information for the order.

ShipStation can determine if an order is a gift from the order data sent by the store.

ShipStation will import internal notes or order activity from the store into the ShipStation Internal Notes field.

ShipStation will import notes provided by the customer when they made their purchase.

ShipStation will import the total order weight from the store.

ShipStation will import the weight for each line item in the order.

ShipStation will import an image URL for each line item in the order. These images will appear as thumbnails in your Order Details and can be included in email notifications and packing slips.

ShipStation will import item options (such as color or size) for each line item in the order. This data will appear in your Order Details and can be included in customer emails and packing slips.

ShipStation will import a product stock location for each line item in the order.

Status UpdateTracking NumberCarrierServiceCarrier Fee

The shipment update ShipStation sends to the selling channel will include any Notes to Buyer set on the order in ShipStation.

Item Information

Miva Connect Integration Notes

  • If all items in an order are canceled in Miva before the order is sent to ShipStation, the order will not be sent. If all items are canceled in Miva for an order that has already been sent to ShipStation, the order will be moved to the Cancelled status.

  • For Miva merchants who sell kits (where one SKU contains multiple product SKUs that make up the kit), the singular kit SKU will import with the order into ShipStation. The product SKUs will be listed in the order's item details in ShipStation.

  • Splitting and combining Miva Connect orders is not currently supported.
