Document Upload allows you to submit self-prepared customs paperwork, such as Pro Forma Invoices, USMCA form (like USMCA Certification of Origin), or other documents. Use this feature whenever a shipment requires supplemental international documentation to prevent customs delays or delivery issues.
For information about using API endpoints, HTTP examples, and similar needs for this feature, see our developer-specific page Documents: Carrier Document Upload (DUS).
Supported Carriers
Currently, the Document Upload feature is supported for the following carrier integrations:
-
FedEx
-
UPS
Supported File Formats
The following file extensions are allowed:
-
PDF (
.pdfis the default, if left blank) -
PNG (
.png)
Important Note about Uploaded Documents
Once you have uploaded a document and sent it to the carrier, it cannot be deleted or modified. Please ensure all information is accurate before finalizing.
The following are required to use Document Upload.
Account Setup & Prerequisites
For standalone UPS accounts, you must have a valid 6-digit UPS shipper number enabled for "Upload Forms Created Offline" to avoid API errors.
UPS Document & Upload Restrictions
The table outlines the document and upload restrictions for UPS international shipments, specifying the accepted file formats (PDF and PNG), file size limits (up to 10 MB per file and 50 MB total per order), and a maximum quantity of 13 documents per shipment.
|
Requirement |
Limit / Specification |
|---|---|
|
Accepted File Formats |
PDF or PNG only
|
|
File Size |
|
|
Quantity |
Maximum of 13 total documents allowed per shipment (up to 13 files uploaded at one time). |
Supported Document Types
The types of forms you can upload vary depending on whether you are shipping with FedEx or UPS.
FedEx Accepted Forms:
-
Pro Forma Invoice
-
USMCA Certification of Origin
-
USMCA Commercial Invoice Certification of Origin
-
Other Commercial Documents
UPS Accepted Forms:
-
Authorization Form
-
Certificate of Origin
-
Declaration
-
Export Accompanying Document / Export License
-
Import Permit
-
Packing List
-
Power of Attorney
-
Pro Forma Invoice / Commercial Invoice
-
Shipper's Letter of Instruction
-
Shipper's Export Declaration (SED)
-
USMCA Certification of Origin / Commercial Invoice
You can attach customs documents directly to an order before generating a shipping label.
-

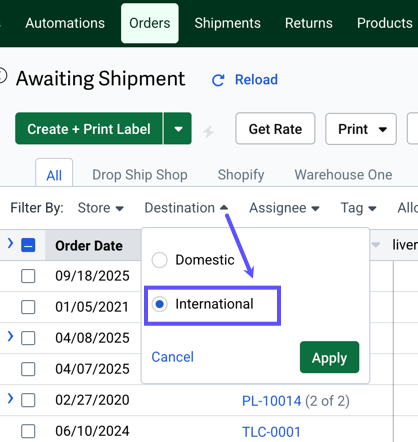

Open an international order on the Orders grid.
-

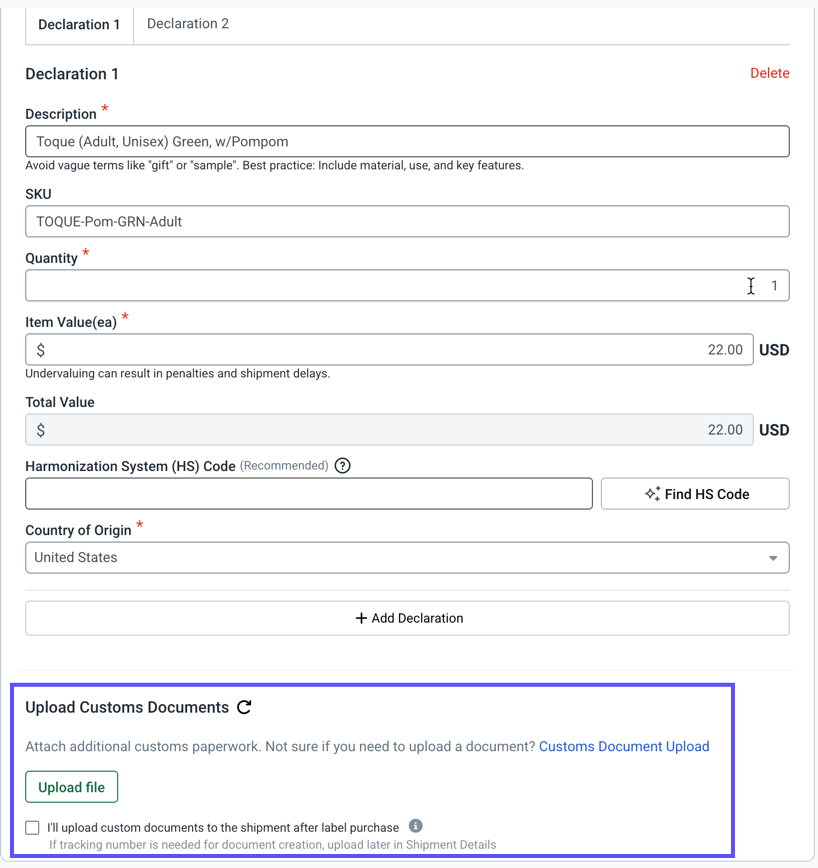

Open the Customs section of the specific order, and scroll to the Upload Customs Documents section of the Declarations.
-

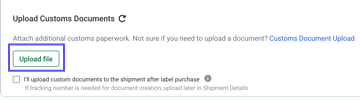

Click Upload File.
The Upload Customs Documents pop-up will open.
-

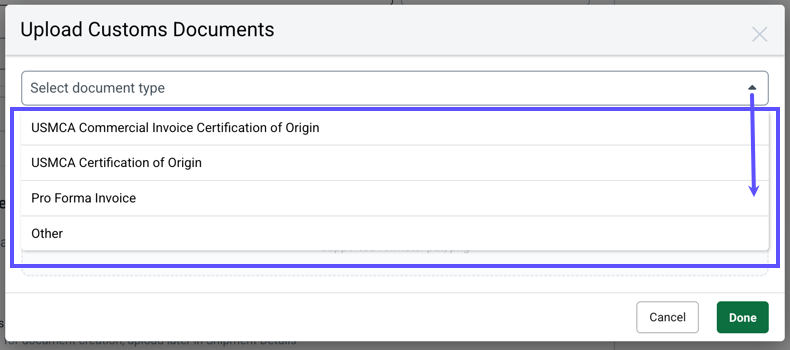

Select the Document Type from the dropdown menu before choosing your file.
-

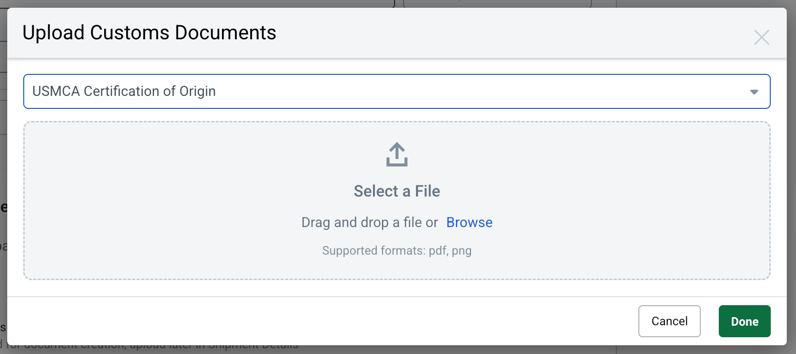

Drag-and-drop or upload the file from your local directory.
-
Click Done to save the changes.
The document will be securely saved with the order and automatically transmitted to the carrier as soon as the shipping label is created.
If your customs documents are not ready when you are creating the shipping label, you can still upload them later by flagging the order in advance.
-
Pre-Label Setup (Required): Before creating the label, go to the Customs section and select the checkbox to upload documents later.
Required Step: Enable Post-Label Uploads First
You must select this option prior to label creation if you intend to add documents to the shipment later.
-
Post-Label Upload: Once the documents are ready, you can upload them by opening the Shipment Details page.
-
Manage Outstanding Documents: To help you track shipments missing required paperwork, any shipment flagged for later upload that does not yet have a document attached will automatically appear in the Pending Customs Documents shipment view. Use this dashboard to ensure all pending shipments are completed before transit.
