How to create single labels (video demo: Ship Orders), the Cost Summary screen, what happens when you create labels, & how to view them.
ShipStation's major function is to creating labels for your shipments. There are several ways to create labels to suit your workflow needs, including.
Create a single label for a single order.
-
Create multiple labels for a single order (called multipackage shipments).
To learn how to create multiple package shipments, and which carriers support this option, review the Multipackage Shipments article.
-
Create shipments in bulk (called Batch Shipping).
Creating shipments in bulk automatically creates a Batch in ShipStation. To learn more about Shipment Batches, review the Batch Shipping article.
You can create labels for orders in either the Awaiting Shipment or On Hold status. You cannot create labels for orders in the Awaiting Payment status. For Awaiting Payment orders, you can either wait until the store refresh updates to the order to Awaiting Shipment, or select the Mark as Paid button to manually move it to the Awaiting Shipment status.
Creating Labels vs Printing Labels
While label creation and label printing often happen nearly at the same time, they are two distinct processes. Review the Print Labels article for details on printing labels once they are created.
Fulfillment and Drop-ship Services
If you use a fulfillment service or drop-shipper, review the Send Orders to Fulfillment article for instructions on using this process in ShipStation.
This is the most basic scenario: a single order results in a single label.
To create a single label for one order:
Configure the shipping options for the order (see the Configure Shipping article for details on the various methods to configure shipping).
-

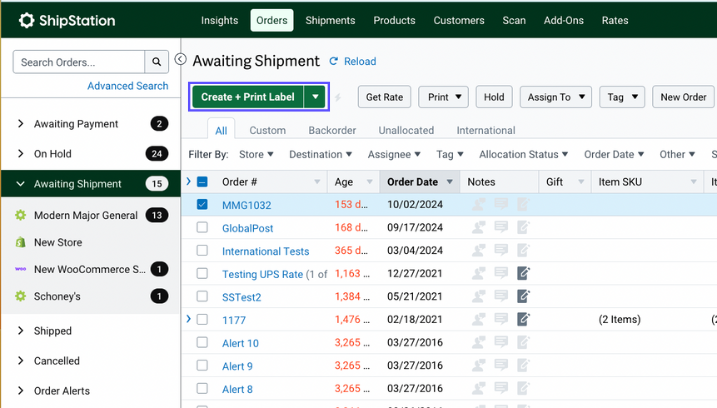

Click Create + Print Label.

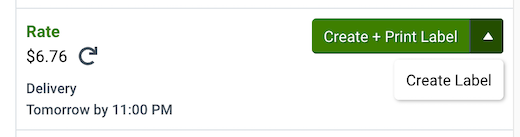

If you would like to create the label, but print it at a later time, click the drop-down on the Create + Print Label button and choose Create Label instead.
The Cost Review Screen

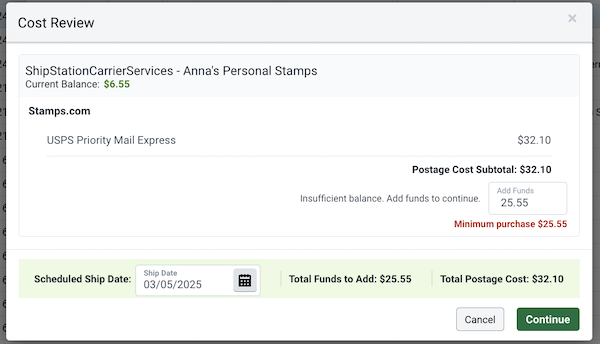

If creating a label with a postage provider that carries a balance, like Stamps.com, you will see a Cost Review screen if your available balance will not cover the cost of the label and you do not have auto-funding enabled.
Add the necessary funds ($10 is typically the minimum allowed) and click Continue.
ShipStation will then display the label in the print pop-up screen and allow you to choose a print method (print to a printer using ShipStation Connect, browser print, or download the label to print through a PDF viewer). For details on the printing process, review the Print Labels articles.
To skip the print pop-up and have ShipStation automatically send your labels to a specific printer, set a default printer for your labels.
Shipment and Order Statuses
When you create the label, ShipStation creates a shipment record, which you can view in the Shipments tab.
Additionally, ShipStation will then update the order's status to Shipped, unless there are other shipments associated with the order that have not had labels created for them yet. In that case, the individual shipment on the order will show as Shipped, but the order will remain in the Awaiting Shipment status.
Now that your orders are in ShipStation, it's time to ship them. This video shows how to configure your shipments and create labels with your connected carrier account.
ShipStation provides an option to create another shipment on orders that have already been shipped. This process will create another label as well as another shipment record for the order, but this shipment record will not contain any items or item details.
The Create Another Shipment option works best for exchanges or replacing lost shipments. You may also want to use this option if your carriers does not support multi-package shipments and the order is too large or too fragile to fit into a single box.
Note
Create Another Shipment does not create a new order and you cannot add products to an order this way. If you need to create a new order, review our Manual Orders article.
Once you have created a label for a shipment, ShipStation replaces the Configure Shipment Widget (CSW) in the Order Details with the shipment information, which cannot be edited. To create another label for this order, you must use the Create Another Shipment option.
-
Choose Create Another Shipment to create a new shipment for the order.
The new shipment will appear below the first shipment and include the text "This shipment has no items."
-
Select the new shipment (in this example, shipment 2 of 2) so you can view and configure the shipment.
Create and print the label once you have finished configuring this new shipment.
Each shipment on the order will have its own unique tracking number, available under the Shipment Activity section in the Order Details screen.
Notifications for Additional Shipments
Since these are new shipments, ShipStation will try to send new customer notification emails and marketplace notifications unless these options are first disabled for the shipment.
For a smoother notification process, the following options may work better for your needs:
These features are the most efficient methods to use to ensure your customers and marketplaces are updated properly.

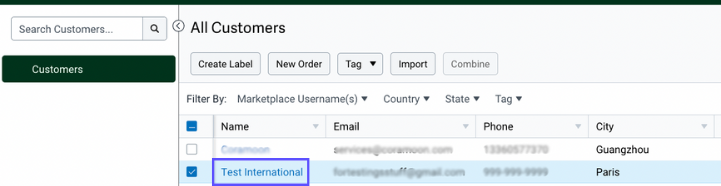

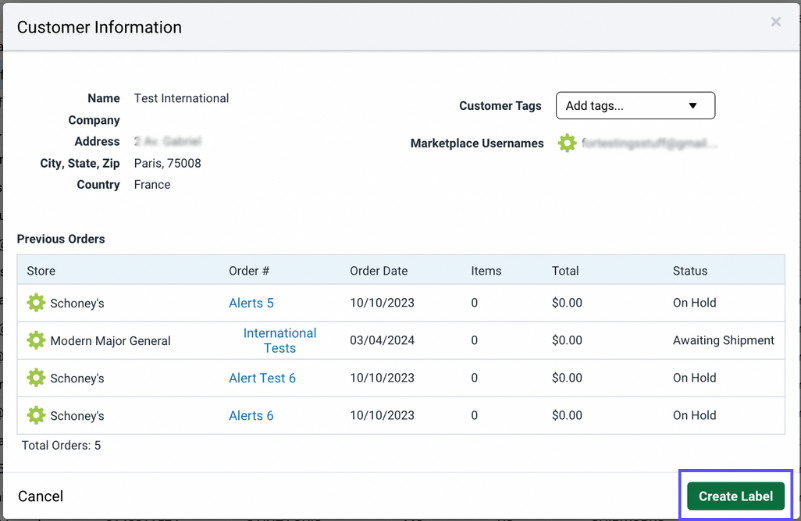

If you need to create a label to ship a package for a customer that already exists in your Customers tab, you can do so with the Create Label option in the Customer Details pop-up.

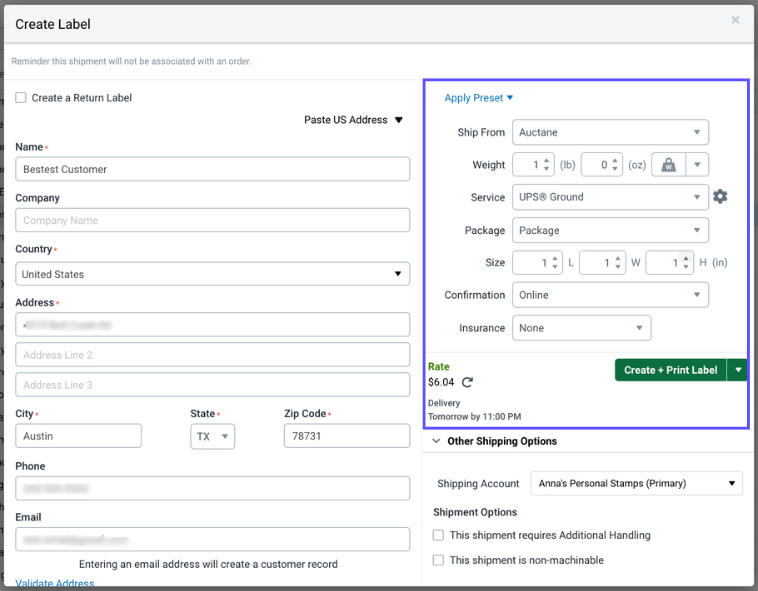

This process creates a label with a shipment record, but does not create an order. Additionally, this shipment record will not have any items associated with it.
When you create labels and shipments triggers certain actions in ShipStation. While these actions often occur simultaneously, they are actually distinct processes.
Label creation triggers the following actions in ShipStation:
ShipStation contacts the selected carrier to request the label and the carrier sends the label in PDF format back to ShipStation.
-
ShipStation creates a shipment record.
You can access the shipment record in the Shipments tab as well as under the Shipment Activity section in the Order Details screen.
ShipStation updates the Configure Shipment Widget to show the shipment details, and sets the shipment record status to Shipped.
ShipStation updates the order status in ShipStation to Shipped, unless there are other shipments on the order that do not yet have labels created. See the Split Ship section below for more details.
ShipStation updates the Smart Document Tracking to indicate the label has been created.
-
ShipStation sends a notification back to the marketplace so the store will update the order accordingly.
This is the default behavior for ShipStation. You can prevent the marketplace notification on a per shipment basis and change the default notification behavior in the Store's Notification Settings. Review the Marketplace Notifications article for details.
ShipStation sends a shipment notification email to the customer, if you have set the store to do so. This option is disabled by default. Review the Customer Notifications article for details.
Requesting a Label Receipt
Every label created in ShipStation is stored in our system for 180 days.
If you ever need documentation of a label you created through ShipStation (to file an insurance claim, for example), contact our support team and include an order number and/or tracking number. We will respond with a copy of your transaction details.
When you split items in an order into different shipments, a few unique things happen.
ShipStation creates an additional shipment within the order that contains the items you've added to it.
-
The new shipment(s) appears as its own row in the Orders grid. This row will display the same order number but reflect only the items this additional shipment contains.
This allows you to select the shipment directly in the grid and configure its shipping options without opening the Order Details screen.
The Configure Shipment Widget in the Order Details and the Shipping Sidebar will display the selections for the selected order.
When you create a label for each individual shipment, it's just like creating a label for an order. The only difference is, the status for the entire order will not update to Shipped until all shipments within the order also update to Shipped.
Below is an example of how the split shipments workflow will appear in ShipStation.
Split Shipment Example Workflow
Here is an Awaiting Shipment order before splitting the items into separate shipments:
Next, an item is split into its own shipment.
The Order Details screen now shows two shipments, each with their own items.
Additionally, you now see two rows in the Orders grid, each representing the shipments for the order. Each row has the same order number, but displays which items are in each shipment.
When you create a label for any of the shipments, all of the same events listed above for creating labels apply.
For the first shipment in this example, it moves to the Shipped status. When you select that shipment in the Order Details screen, the Configure Shipment Widget updates to show its label details like tracking number and service.
Notice that Shipment 1 shows that it is in the Shipped status, while Shipment 2 and the order itself still show they are in the Awaiting Shipment status.
Additionally, the corresponding row in the Orders grid will move from the Awaiting Shipment section of the Orders grid to the Shipped section of the Orders grid.
Finally, after you create a label for the last shipment, ShipStation then updates the order to the Shipped status.
To learn about how to include company logos and label messages to your labels, please review the Document Options section of the ShipStation Print Settings article.
Some carriers have limitations for their labels, such as character limits and support for label messages. For details, review the article for your specific carrier on our Integrations Help Guide.
-
Most carriers in English-speaking countries do not support non-Roman characters on labels created through their APIs. If an address contains non-Roman characters (like Kanji, Hanzi, and Cyrillic), this can result in ??? appearing where the text should be.
You will need to void the label, translate the characters into English (either by contacting the customer or using a program like Google Translate), and copy the Roman text into the recipient fields before creating a new label.
To also include the original address, copy / paste the original address into a text editor, print separately, and tape it to the package next to the label.
Creating single labels in ShipStation Legacy differs somewhat than the process used in the new layout.
Once you have configured an order's shipping details, you can create a label from the Order Grid or Order Details screen. Follow the steps below, or scroll down to watch a demo video.

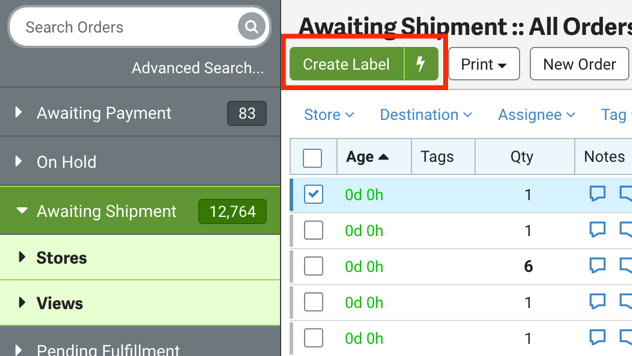

Select an order in the Orders grid.
-
Click the Create Label button.

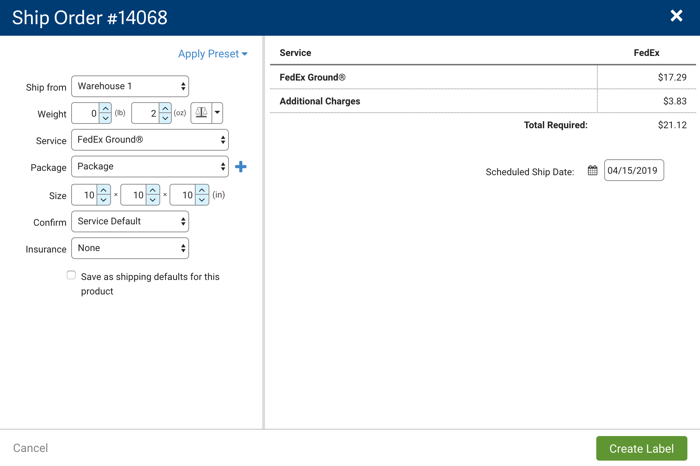

ShipStation will open the Cost Summary screen to view the rate and make any necessary changes (if Quickship is enabled, ShipStation will skip this screen).
If you use a postage provider with a balance and the balance is not sufficient for the cost of the label(s), you will be prompted to add funds.
-
Click Create Label and ShipStation will request the label from the carrier.

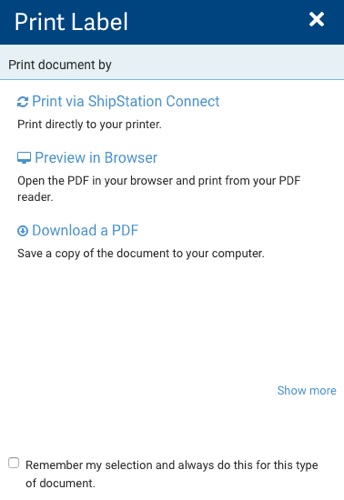

Once the label generates, a pop-up will display your print methods:
Via ShipStation Connect.
View it from your browser, then print.
Download the PDF to your device, then print.
Select one of these options to view and print out the shipping label.
Print a Label Without an Order
Need to print a label without an order? Use the steps in the Calculate Rates article.
Now that your orders are in ShipStation, it's time to ship them. This video shows how to configure your shipments and create labels with your connected carrier account.
ShipStation Legacy Layout
This content features ShipStation's legacy layout and may not exactly reflect your current ShipStation layout experience.
The Cost Summary screen displays the postage details for the label(s) you are about to create. It also allows you modify the shipment date and to determine how much postage you want to purchase (if using a pay-on-create carrier).
When adding funds to a carrier balance, you must add at least enough for the cost of the selected labels.
For USPS labels, the minimum amount of postage you can purchase at one time is $10.
The Cost Summary screen will appear if any of the following apply:
If you have selected a postage provider that charges for labels upon creation, your postage balance is not sufficient to cover the full cost, and you do not have auto-funding enabled.
If you do not have Quickship enabled.
If you are creating labels from a batch or creating labels for multiple orders at once. The label batch cost summary differs slightly from the standard Cost Summary screen.
When you are satisfied with your cost review, click the Create Label(s) button to proceed.
Once the label(s) have been created, you can review them in the Shipments Tab.
Each row in the Shipments grid indicates a label you have created.
To view a label, click an order to open up the Order Details and then click the Labels button in the Shipments section.
Or, select orders from the Shipments Grid and click Print in the Action bar, then select Labels from the drop-down menu.
You will see the Print Label pop-up screen.
To view the label, choose Preview in Browser.
Requesting a Label Receipt
Every label created in ShipStation is stored in our system for 180 days.
If you ever need documentation of a label you created through ShipStation (to file an insurance claim, for example), contact our support team and include an order number and/or tracking number. We will respond with a copy of your transaction details.
Creating a label triggers the following processes:
ShipStation requests the label from the appropriate postage provider. The provider sends a PDF of the label back to ShipStation.
ShipStation updates the order to Shipped.
ShipStation sends a shipment notification to the selling channel associated with the order.
ShipStation sends a shipment notification email to the customer, if you have set the store to do so. This option is disabled by default. Review the Customer Notifications article for details.
Label Limitations
Orders in the Awaiting Payment status must first be moved to the Awaiting Shipment status before you can create a label for them. This can be done by a store refresh (once the order is paid for on your selling channel) or manually by clicking the Mark as Paid button in ShipStation.
Some carriers have limitations for their labels, including character limits and support for label messages. For details, review the article for your specific carrier on our Integrations Help Guide.
ShipStation does not create international return labels.
The default behavior for ShipStation is to send a notification automatically to the selling channel when you create a label. You can prevent the marketplace notification on a per order basis or change the default notification behavior in the Store's Notification Settings. Review the Marketplace Notifications article for details.
-
Most carriers in English-speaking countries do not support non-Roman characters on labels created through their APIs. If an address contains non-Roman characters (like Kanji, Hanzi, and Cyrillic), this can result in ??? appearing where the text should be.
You will need to void the label, translate the characters into English (either by contacting the customer or using a program like Google Translate), and copy the Roman character text into the recipient fields before creating a new label. To also include the original address, copy / paste the original address into a text editor, print separately, and tape it to the package next to the label.
